AHU & Plant Frames

AHU & Plant Frames

Features

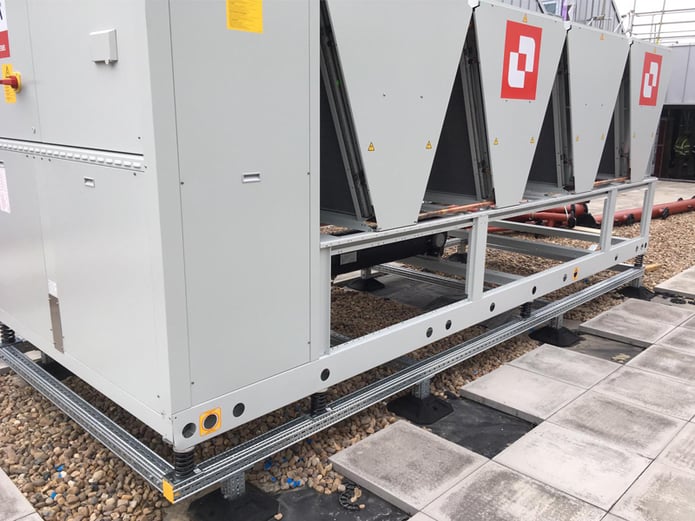

• Framo frames for supporting AHU’s and other heavy roof mounted plant.
• Designed by MIDFIX engineers from plant drawing or customer supplied information.
• Design consideration includes plant dimensions, weight, allowable roof pressure and wind loading.
• Framo’s lightweight and high strength make it ideal for rooftop applications.
• Can be supplied fully assembled, partly assembled or in component form depending on access requirements.

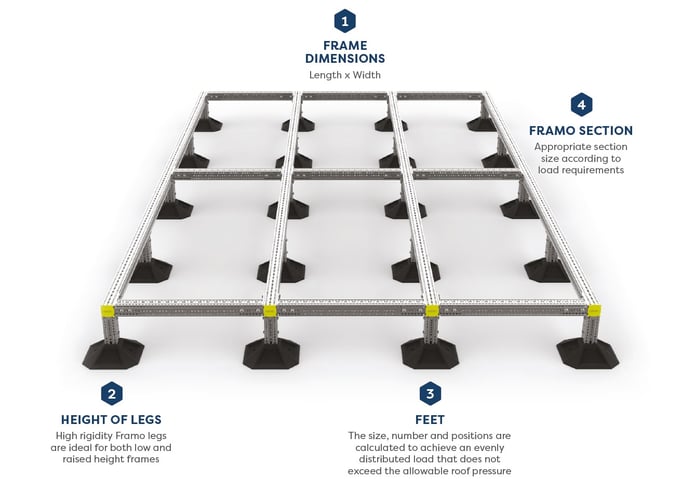

The four steps to picking your perfectly-fitted roof support frame:

Step 1: Choose your frame dimensions (Length x Width).
Step 2: Choose the height of the legs (High rigidity Framo legs are ideal for both low and raised height frames)
Step 3: Choose the feet (the size, number and positions are calculated to achieve an evenly distributed load that does not exceed the allowable roof pressure)
Step 4: Choose the right Framo Section (appropriate section size according to load requirements).

If you would like to make an enquiry simply contact our team: 0115 922 1585 / sales@midfix.co.uk

Or perhaps you are still unsure, that’s not a problem, this article may help you to make the right decision – Getting started with AHU roof support frames?
