Zip-Clip

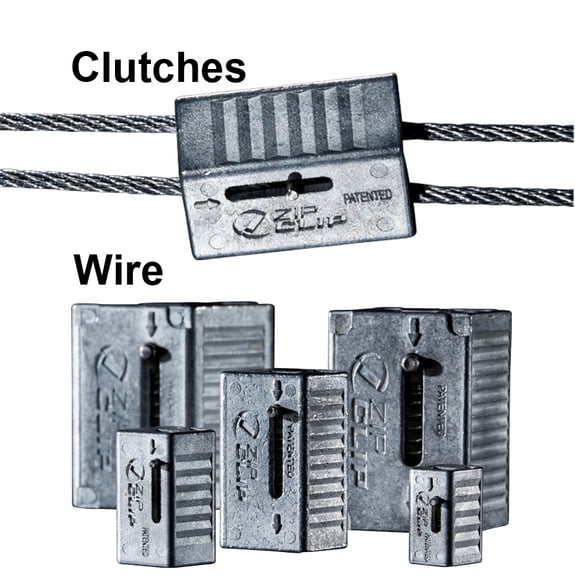

Zip-Clip – wire suspension systems are manufactured from high quality zinc alloy with sintered metal locking wedges that grip the wire rope. They perform the same function as a traditional wire rope grip but in a fraction of the time and with the advantages of ratchet tensioning the wire along with instant release and adjustment. This means that Zip-Clips product range have become a popular alternative to traditional installation methods giving considerable savings in both time and materials. View the complete range of attachments.

Available as pre-made kits or clutches and reels of wire.

Benefits

    • Ratchet grips for wire rope
    • Finger operated release mechanism
    • Four sizes
    • Fix to existing services
    • Fix to concrete applications
    • Fix to Timber and other substrates
    • Suitable for profile decking
    • Suitable for basket and tray





Code Size / Ref TypeSuits WireLength (metre)Safe Tensile Load (Clutches) Safe Working Load (Wire) Request a quote
1448050 KL50 Zip-Clip clutches 1.0 - 1.2mm N.A 15kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448100 KL100 Zip-Clip clutches 2.0mm N.A 50kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448944 R100S Reels of wire KL100 100 50kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448942 R100Y Reels of wire KL150 100 120kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448941 R100P Reels of wire KL200 200 300kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448150 KL150 Zip-Clip clutches 3.0mm N.A 120kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448200 KL200 Zip-Clip clutches 4.0mm N.A 300kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1448940 R200G Reels of wire KL50 200 15kg Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
