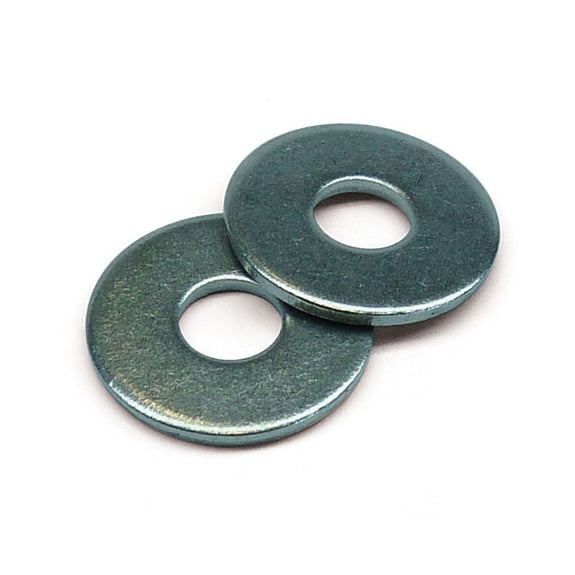

Stainless Heavy Oversize Washers

Stainless Heavy Oversize Washers – Grade A4

  • Grade A4 – 316 stainless steel
  • DIN 9021
  • Thick washers and 3 x bolt diameter

Grade A4 stainless steel is used for fasteners requiring higher levels of corrosion resistance and is often referred to as marine grade or acid proof. Form ‘G’ heavy oversize washers with a grade A4 316 stainless steel finish. The washer diameter is 3 x bolt diameter.

Category:
Code Size / Ref Outside dia. x Thickness Request a quote
1586050 M 5 15 x 1.2mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586060 M 6 18 x 1.6mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586080 M 8 24 x 2.0mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586100 M 10 30 x 2.5mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586120 M 12 37 x 3.0mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586160 M 16 50 x 3.0mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586200 M 20 60 x 4.0mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1586240 M 24 72 x 5.0mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
