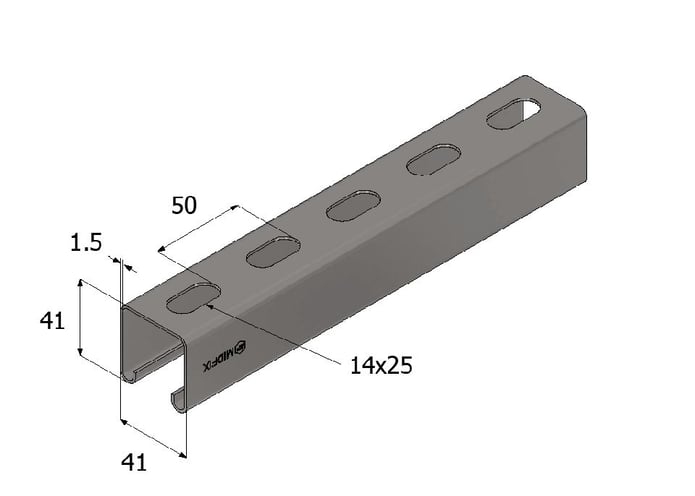

LS41 41x41x1.5 MX Slotted Channel

LS41 – MX Channel –  Light Slotted

Light slotted channel available in 3m length suited for lighter applications.


  • Slot size 14mm x 25mm
  • LS41 can support 261kg per metre, uniformly distributed.
  • 1.5mm thick steel for lighter applications
  • Pre-galvanised steel to BS EN 10326

Technical Data

  • Material Standard: BS EN 10346:2009
  • Material Specification: S280GD + Z275
  • Minimum Yield Stress: 280N/mm2
  • Finish: Pre-galvanised
    • 275g/m2 min. coating weight
    • 20µm average coating thickness
  • Product Weights:
    • LS41 – 1.52 kg/m

Code Size / Ref Length Request a quote
1303241 LS41/3m MX Channel - Light Slotted 3000mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
