LS21 41x21x1.5 MX Slotted Channel

LS21 – MX Channel – Light Slotted

LS21 MX Channel section is best suited for lighter applications as it is made from 1.5mm thick steel. As with all of our pre-galvanised MX channel it is made by continuously hot-dip zinc coated steel strip conforming to BS EN 10346:2009.

Features

  • LS21 MX Channel section is manufactured by cold rolling BS 6946:1988 and marked at regular intervals along each length with the MIDFIX name and BS number as required by the standard.

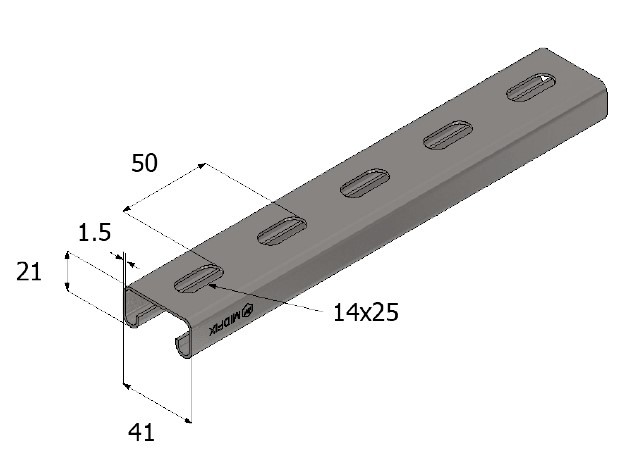

  • Slot size 14mm x 25mm.
  • LS21 can support 54kg per metre, uniformly distributed.
  • Available in 3m length.
  • 1.5mm thick steel for lighter applications

Technical Data

  • Material Standard: BS EN 10346:2009
  • Material Specification: S280GD + Z275
  • Minimum Yield Stress: 280N/mm2
  • Finish: Pre-galvanised
    • 275g/m2 min. coating weight
    • 20µm average coating thickness
  • Product weights – LS21 – 0.97 kg/m

Code Size / Ref Length Request a quote
1303221 LS21/3m - MX channel - Light Slotted 3000mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
