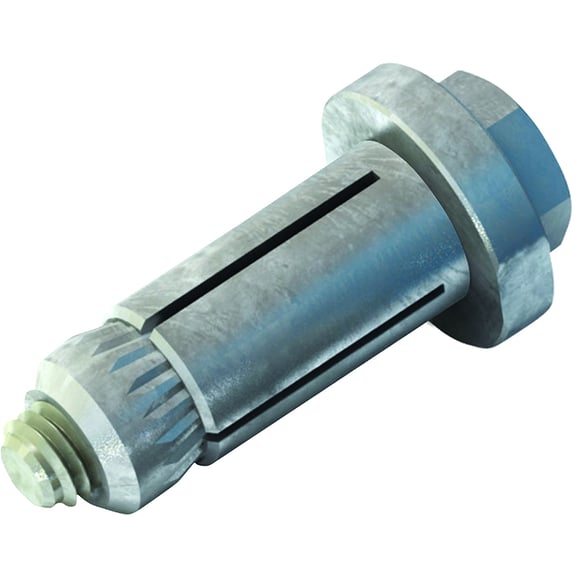

Lindapter Hollo-Bolt

Lindapter Hollo-Bolt:

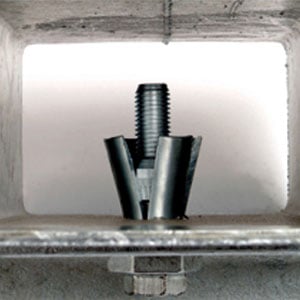

  • Expanding type bolts for hollow steelwork
  • Bright Zinc Plated – also available in Hot Dip Galvanised and Stainless Steel

Code Size / Ref Bolt ØDrill ØClamping Range Request a quote
1463081 HB 08-1 M8 14mm 3 - 22mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463082 HB 08-2 M8 14mm 22 - 41mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463083 HB 08-3 M8 14mm 41 - 60mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463101 HB 10-1 M10 18mm 3 - 22mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463102 HB 10-2 M10 18mm 22 - 41mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463103 HB 10-3 M10 18mm 41 - 60mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463121 HB 12-1 M12 20mm 3 - 25mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463122 HB 12-2 M12 20mm 25 - 47mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463123 HB 12-3 M12 20mm 47 - 69mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463161 HB 16-1 M16 26mm 12 - 29mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463162 HB 16-2 M16 26mm 29 - 50mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463163 HB 16-3 M16 26mm 50 - 71mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463201 HB 20-1 M20 33mm 12 - 34mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463202 HB 20-2 M20 33mm 34 - 60mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1463203 HB 20-3 M20 33mm 60 - 86mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
