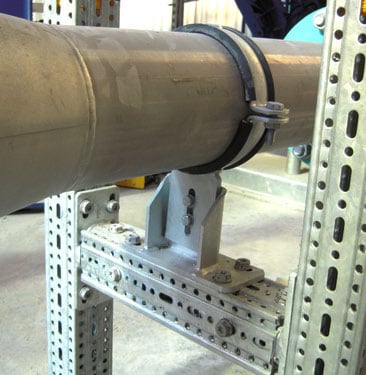

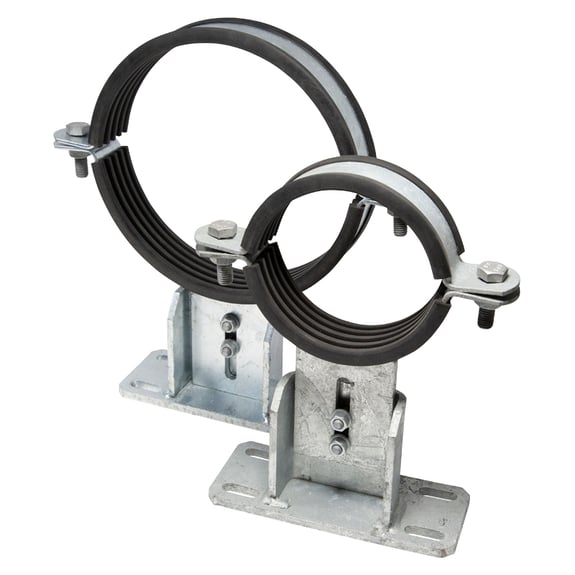

Height Adjustable Pipe Clamps

Height Adjustable Pipe Clamps

  • High load pipe bracket assemblies with high rigidity
  • Up to 27mm micro height adjustment
  • Can be used in all plains – supporting, suspending or horizontally
  • Nord-Lock secured bolts for guaranteed non-vibration loosening
  • EPDM lining for sound and vibration absorption
  • Fully hot dip galvanised
  • Base plate suits Framo 80 box section

Height adjustable pipe clamps are part of the QMEXX Pipe Supports range.

CodeSize / RefPipe O.D.Base SizeSlots forRequest a quote
11553083CPC80-08379-85mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553089CPC80-08988-93mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553104CPC80-104100-106mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553115CPC80-115113-117mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553125CPC80-125123-127mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553154CPC80-154148-154mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553168CPC80-168166-170mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553204CPC80-204196-203mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553219CPC80-219219-225mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553254CPC80-254248-254mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
11553305CPC80-305299-305mm200 x 80 x 8mmM10 Speak to a specialist on 0115 922 1585.
Add to quote
Add to quote
