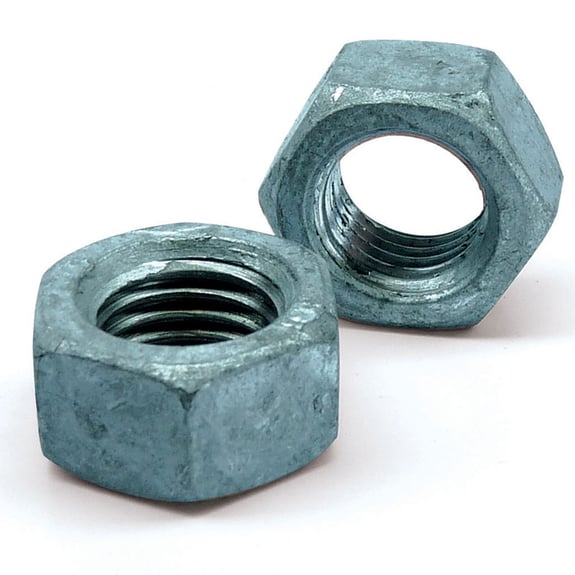

Galvanised Nuts
- Grade 8 hexagon full nuts
- Hot Dip Galvanised
- DIN934
Galvanised nuts have oversize tapped threads to accommodate the galvanising layer on the bolt threads.
Search thousands of fixings and fasteners
| Code | Size / Ref | Spanner Size | Depth | |
|---|---|---|---|---|
| 1540060 | M 6 | 10mm | ||
| 1540080 | M 8 | 13mm | 6.14mm | |
| 1540100 | M 10 | 17mm | 7.64mm | |
| 1540120 | M 12 | 19mm | 9.64mm | |
| 1540160 | M 16 | 24mm | 12.30mm | |
| 1540200 | M 20 | 30mm | 14.90mm | |
| 1540240 | M 24 | 36mm | 17.70mm | |
| 1540270 | M 27 | 41mm | 20.70mm | |
| 1540300 | M 30 | 46mm | 22.70mm | |
| 1540330 | M 33 | 50mm | 24.70mm | |
| 1540360 | M 36 | 55mm | 27.40mm |
