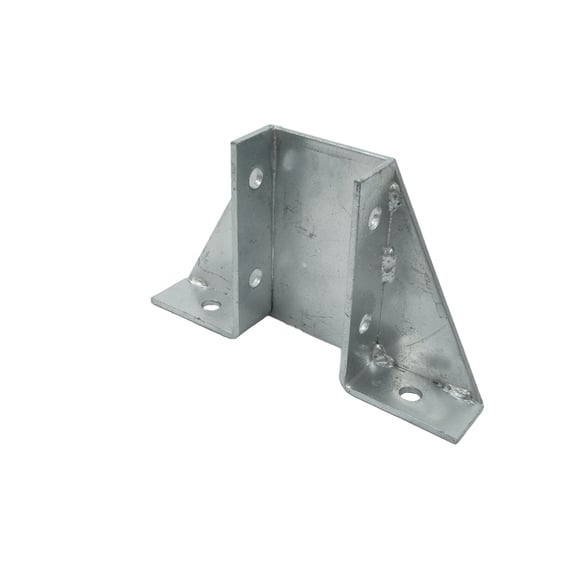

FP603/82 MX Gusset Base Plate – Double
Features
- Gusseted Base Plate for double channel
- Hot Dip Galvanised
Technical Data
Steel thickness: 5.0mm
Minimum Yield Stress: 275N/mm2
Finish: Hot Dip Galvanised – 55µm average coating thickness
Maximum Safe Loads
Loads apply to the channel connection shown assembled with:
1.) MX 2.5mm channel
2.) M12 Grade 8.8 hex head set screws
3.) 60Nm torque setting
