BIFIX G2 Lined

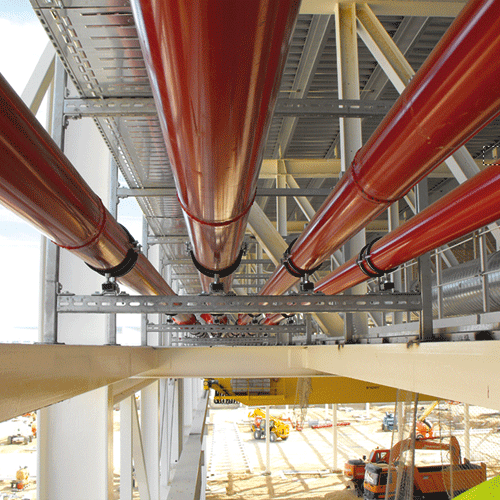

BIFIX-G2-Lined-in-situ
UltraProtect 1000

BIFIX G2 LINED

BIFIX G2  lined pipe clamps are two-piece pipe clamps with UltraProtect 1000 zinc flake coating for superior corrosion resistance. They have welded bosses with M8/M10 dual tapped threads throughout the range and a quick closing mechanism for opening and closing the clamp without removing the screws. Bifix G2 Lined clamps have a durable EPDM rubber lining to isolate the clip from the pipework. The comprehensive range covers all pipe diameters from 15mm to 225mm.

BIFIX G2 Applications

BIFIX lined pipe clamps are premium quality pipe clamps for supporting medium load pipework. UltraProtect 1000 is an advanced surface protection system with 1000 hours salt spray resistance for excellent corrosion resistance outside and in more demanding indoor environments. Suitable for use with a wide range of uninsulated pipes including copper, steel, carbon steel and multi-layer composite pipes. EPDM rubber lining isolates the clamp from the pipe for noise reduction and prevents contact between steel clamps and copper pipes.

BIFIX G2 Features

  • Increased strength pipe clamps
  • EPDM age-resistant lining for sound and vibration absorption
  • M8/M10 dual tapped boss
  • Quick close screw mechanism
  • Extreme corrosion resistance for indoor and outdoor use
  • 1000 hour salt spray resistance
  • Suitable for corrosive environments of classes
  • C1 to C4

Technical Data

Material: Steel
Finish: UltraProtect 1000 Zinc flake coating
Threads: M8/M10 welded boss
Lining: EPDM Rubber
Noise Reduction: Tested according to DIN 4109
*Loads: Safe static tensile loads according to RAL-GZ 655

If you are looking for pipe insulation blocks for your next M&E installation then here you will find an easy-to-read comparison guide to keep you informed.

Category:
Code Size / Ref Pipe O.D.Copper SizeSteel Size N.B.b x s (mm)*Load (kN)Box Qty Request a quote
113018 BFL018 15-19mm 15mm 3/8" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113022 BFL022 20-23mm 22mm 1/2" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113028 BFL028 25-28mm 28mm 3/4" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113035 BFL035 31-35mm 35mm 1" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113040 BFL040 40-45mm 42mm 1.1/4" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113048 BFL048 48-52mm 1.1/2" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113054 BFL054 54-58mm 54mm 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113060 BFL060 60-64mm 2" 20 x 1.25 0.7 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113070 BFL070 66-70mm 67mm 20 x 1.50 0.8 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113075 BFL075 75-79mm 76mm 2.1/2" 20 x 1.50 0.8 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113083 BFL083 80-83mm 20 x 1.50 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113090 BFL090 88-91mm 3" 23 x 2.00 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113100 BFL100 100-105mm 23 x 2.00 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113115 BFL115 108-115mm 108mm 4" 23 x 2.00 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113125 BFL125 125-130mm 23 x 2.00 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113140 BFL140 133-140mm 5" 23 x 2.00 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113160 BFL160 152-160mm 159mm 23 x 2.00 1.7 25 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113168 BFL168 165-169mm 6" 25 x 2.50 2.0 10 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113180 BFL180 176-180mm 25 x 2.50 2.5 15 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113200 BFL200 192-200mm 25 x 2.50 2.5 15 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113210 BFL210 205-210mm 25 x 2.50 2.5 10 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1113225 BFL225 219-225mm 8" 25 x 2.50 2.5 10 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
