AB209 Angle Bracket
AB209 MX Channel - Bracket

AB209 MX Channel Angle Bracket

AB209 Angle Bracket

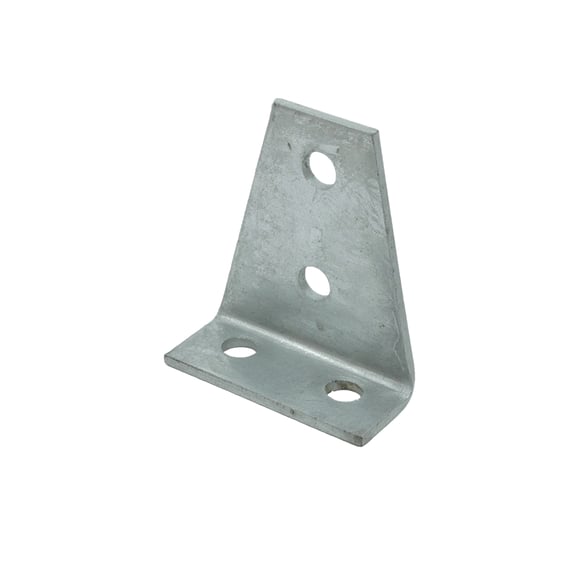

AB209– MX Channel Angle Brackets for connecting with 41mm MX Channel to support M&E services. The 2-hole by 2-hole bracket helps to support services in this orientation.

Features

  • 2 hole/2 hole 90 degree Angle
  • Hot Dip Galvanised
  • Maximise safe installations

Technical Data

Steel Thickness: 5.0mm
Minimum Yield Stress: 275N/mm2
Finish: Hot Dip Galvanised 55 micron min. average coating thickness.

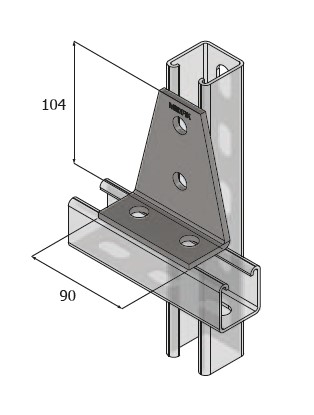

Maximum Safe Loads (see images)

  • *1 load applies to the channel connection shown assembled with –
    • MX HS/HP41 Channel
    • M12 Grade 8.8 hex head set screws
    • 60Nm torque setting
  • *2 Load applies to bracket only without channel

Curious to know why a tested channel system would be useful for your next M&E installation?

Category:
Code Size / Ref BOX QTY Request a quote
1327209 AB209 - MX Channel Bracket - Angle 50 Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
