HS21 slotted channel MX Channel Section
HS21G uniformly distributed load

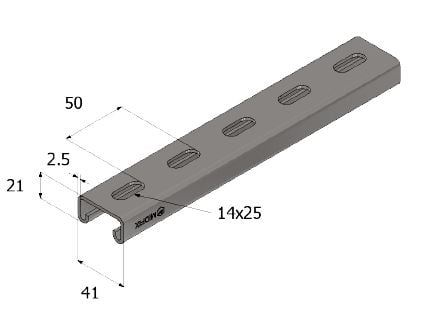

HS21 41x21x2.5 MX Slotted Channel

HS21 – MX Cut Channel – Heavy Slotted.

In building services tier 1 contractors are asking: “can you demonstrate that the structure you have installed can take the load applied to it and that the supports and fixings are fit for purpose?” one method of providing evidence is through a tested channel system.

Features

  • HS21 Slotted channel has a slot size of 14 x 25mm
  • HS21 can support 77kg per metre, uniformly distributed.
  • Available in 2m, 3m, 6m, or available cut to size – (see product table).
  • MX pre-galvanised channel is manufactured from continuously hot-dip zinc-coated steel strip conforming to BS EN 10346:2009.

Technical Data

  • Material Standard: BS EN 10346:2009
  • Material Specification: S280GD + Z275
  • Minimum Yield Stress: 280N/mm
  • Finish: Pre-galvanised
    • 275g/m2 min, coating weight
    • 20µm average coating thickness
  • Product Weights
    • HS21 – 1.62 kg/m

If you are still unsure about the type of steel profile you require, fear not, the following article will help you to compare the different types.

Category:
Code Size / Ref Length Request a quote
1302421 HS21/2m - MX Channel - Heavy Slotted 2000mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1303421 HS21/3m - MX Channel - Heavy Slotted 3000mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
1306421 HS21/6m - MX Channel - Heavy Slotted 6000mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017020 HS21/200 - MX Cut Channel - Heavy Slotted 200mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017025 HS21/250 - MX Cut Channel - Heavy Slotted 250mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017030 HS21/300 - MX Cut Channel - Heavy Slotted 300mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017035 HS21/350 - MX Cut Channel - Heavy Slotted 350mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017040 HS21/400 - MX Cut Channel - Heavy Slotted 400mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017045 HS21/450 - MX Cut Channel - Heavy Slotted 450mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017050 HS21/500 - MX Cut Channel - Heavy Slotted 500mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017055 HS21/550 - MX Cut Channel - Heavy Slotted 550mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017060 HS21/600 - MX Cut Channel - Heavy Slotted 600mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017065 HS21/650 - MX Cut Channel - Heavy Slotted 650mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017070 HS21/700 - MX Cut Channel - Heavy Slotted 700mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017075 HS21/750 - MX Cut Channel - Heavy Slotted 750mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017080 HS21/800 - MX Cut Channel - Heavy Slotted 800mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017085 HS21/850 - MX Cut Channel - Heavy Slotted 850mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017090 HS21/900 - MX Cut Channel - Heavy Slotted 900mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017100 HS21/1000 - MX Cut Channel - Heavy Slotted 1000mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017110 HS21/1100 - MX Cut Channel - Heavy Slotted 1100mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017120 HS21/1200 - MX Cut Channel - Heavy Slotted 1200mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017130 HS21/1300 - MX Cut Channel - Heavy Slotted 1300mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017140 HS21/1400 - MX Cut Channel - Heavy Slotted 1400mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017150 HS21/1500 - MX Cut Channel - Heavy Slotted 1500mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017160 HS21/1600 - MX Cut Channel - Heavy Slotted 1600mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017170 HS21/1700 - MX Cut Channel - Heavy Slotted 1700mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
13017180 HS21/1800 - MX Cut Channel - Heavy Slotted 1800mm Speak to a specialist on 0115 922 1585. Speak to a specialist on 0115 922 1585.
